| Brand Name : | CNOEC, OPTO-EDU |
| Certification : | CE|Rohs |
| Model Number : | A18.1828-LCD |
| Price : | FOB $1~1000, Depend on Order Quantity |
| Delivery Time : | 5~20 Days |
| Payment Terms : | T/T,West Union,Paypal |
| Supply Ability : | 5000 pcs/ Month |


![]() |

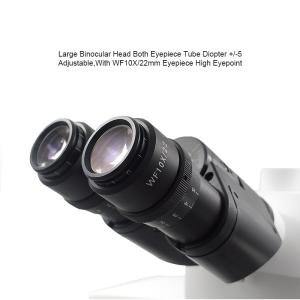

| Large Binocular Head both eyepiece tube diopter+/-5 adjustable, with WF 10X/22mm eyepiece high eyepoint |
![]() |
| Magnification Correction System, with correcting lens |
![]() |
![]() |

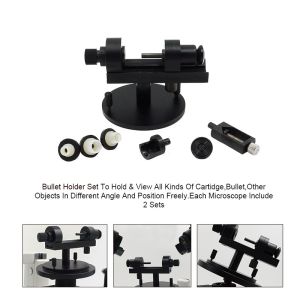

| Bullet Holder Set To hold & view all kinds of cartridge, bullet, other objects in different angel and position freely. Each Microscope Include 2 sets. |
![]() |

![]() |
| Separation Line Adjust System in Black, with special designed adjust driver |
![]() |
| Coaxial Light Attachment to get vertical light path for watching inside deep hole bottom |
![]() |

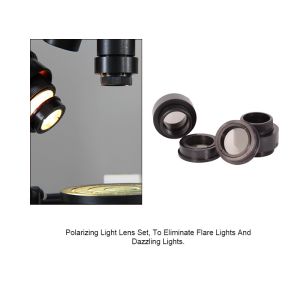

| Polarizing Light Lens Set To eliminate flare lights and dazzling lights |
![]() |

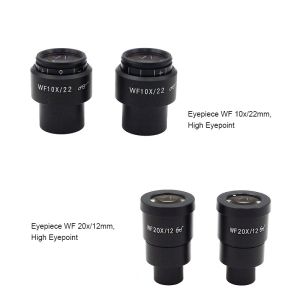

| Eyepiece WF 10x/22mm and WF 20x/12mm, high eyepoint, each 2 pcs included |
![]() |
| Long Working Distance Infinity Plan Objectives: 0.5x, 1x, 1.5x, 2x, 4x, 6x |
![]() |

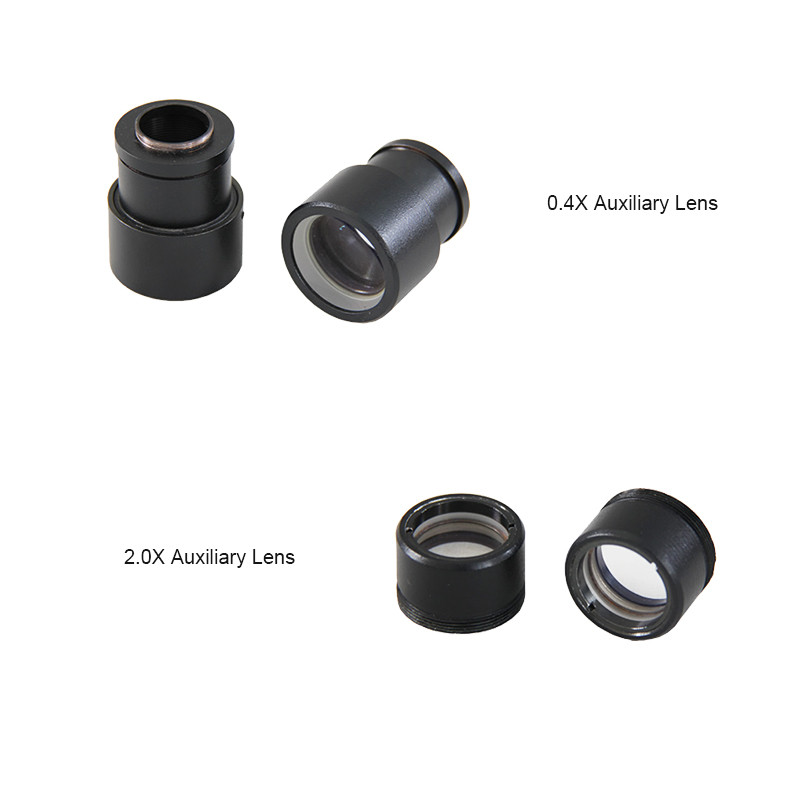

| Auxiliary Lens 0.4x and 2x, each 2 pcs included |



| Opto-Edu has upgraded A18.1828-LCD’s LCD from A59.3520 to A59.3521 in 2024, with Bigger LCD, Higher resolution, Better software at SAME price! Welcome to try the brand new design! |
| A59.3520 | A59.3521 Upgrade 2022! | |
| LCD | 9.7" HD IPS Touch Screen With Backlight | 10.5" HD IPS Touch Screen With Backlight |
| Camera | 5.0M Digital Camera | 8.0M 4K Digital Camera |
| Sensor | 1/2.5" CMOS | 1/1.8" CMOS |
| Resolution | 2048x1536 @15FPS | 3840*2158 @30FPS |
| Pixel | 2.2umx2.2um | 2.0umx2.0um |
| Memory | 2GB DDR3 / 8GB EMMC | 2GB LPDDR4 / 16GB EMMC |
| Digital Zoom | - | 16x |
| Data Output | USB2.0*1, For USB Mouse + Keyboard Control | USB2.0*1, For USB Mouse + Keyboard Control |
| USB2.0*1, For USB Disk | USB3.0*2, For USB Disk, Support Max 128G | |
| Mini HDMI*1 Sync Output to Monitor | HDMI*1 Sync Output to Monitor | |
| - | LAN*1 | |
| TF Card, Support Max 32G | - | |
| Headphone 3.5mm | - | |
| Image Format | .jpg | .jpg |
| Video Format | 1080p | 1080p |
| System | Android 5.1 System | Android 11 System |
| 90 Languages | 90 Languages | |
| Exposure Control Auto/Manual | Exposure Control Auto/Manual | |
| White Balance Auto/Manual | White Balance Auto/Manual | |
| Support WIFI | Support WIFI | |
| Support Bluetooth | Support Bluetooth | |
| Software | S-Eye Software & Instruction Manual Installed, All Kinds Mark, Measure, Analysis Function | S-Eye Software & Instruction Manual Installed, All Kinds Mark, Measure, Analysis Function |
| Function | Direct Enter Microscope View | |
| Size | Pad 238x182x12mm, Camera 40x39mm | Pad 237x169x10.5mm, Camera 40x39mm |
| Power | DC 12V/2A Power Adaptor, AC 100~240V | |
| Package | Packing Box 10x24x29cm, 0.6Kg, 1 set/Box, including: LCD Camera, AC Adapter | |

![]() | ![]() |
| All Optical Parameter Adjustable | Capture Phot & 1080p Video |
![]() |
| Accessories Packed in Strong Aluminum Box |

| Mag./Viewfield | Eyepiece10X | Eyepiece20X | Photo Adapter | Video Adapter | Working Distance | |
| Objective | ||||||
| 1X | 10X/φ21 | 20X/φ12 | 1.8X | 0.5X | 101mm | |
| 1.5X | 15X/φ15 | 30X/φ8 | 2.7X | |||
| 2X | 20X/φ11 | 40X/φ6 | 4X | |||
| 4X | 40X/φ6 | 80X/φ3 | 7X | |||
| 6X | 60X/φ3.9 | 120X/φ2 | 11X | |||
| 0.5X | 5X/φ60 | 10X/φ24 | 0.9X | 143mm | ||

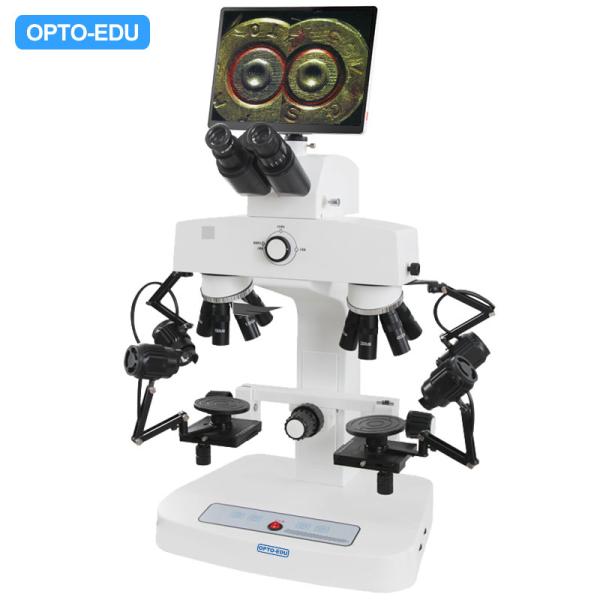

| A18.1828-LCD Forensic Comparison Microscope Specification | |||||||
| LCD Pad | 10.5'' LCD Pad Digital Camera, Android System, 8.0 M Pixels, Full Resolution 4k USB3.0*2, USB2.0*1, HDMl, Gigabit LAN Port Details see A59.3521 | ||||||
| Magnification | 2x~240x | ||||||
| Head | Bionocular Head, 30° Incline, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable | ||||||
| Eyepiece | WF10x/22mm, High Eyepoint | ||||||
| WF20x/12mm, High Eyepoint | |||||||
| Nosepiece | 6 Hole Click Stop Nosepiece | ||||||
| Objective | LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x | ||||||
| Auxiliary Lens 0.4x, 2.0x | |||||||
| Working Distance | 101mm | ||||||
| View Field | Dia. 2.3~62mm | ||||||
| Magnification Correcting | Magnification Correction System, With Correcting Lens | ||||||
| Separation Line Adjusting | Seperation Line Adjust System In Back, With Special Designed Adjust Driver | ||||||
| Working Stage | Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm | ||||||
| Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable | |||||||
| Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm | |||||||

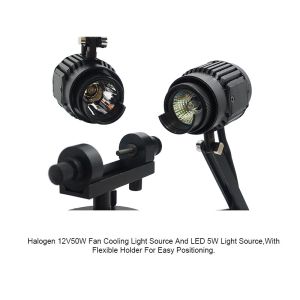

| Light Source | 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable,2pcs | ||||||
| 5W LED Cold Light, High Brightness, Brightness Adjustable,2pcs | |||||||
| Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface,2pcs | |||||||
| Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights,2pcs | |||||||

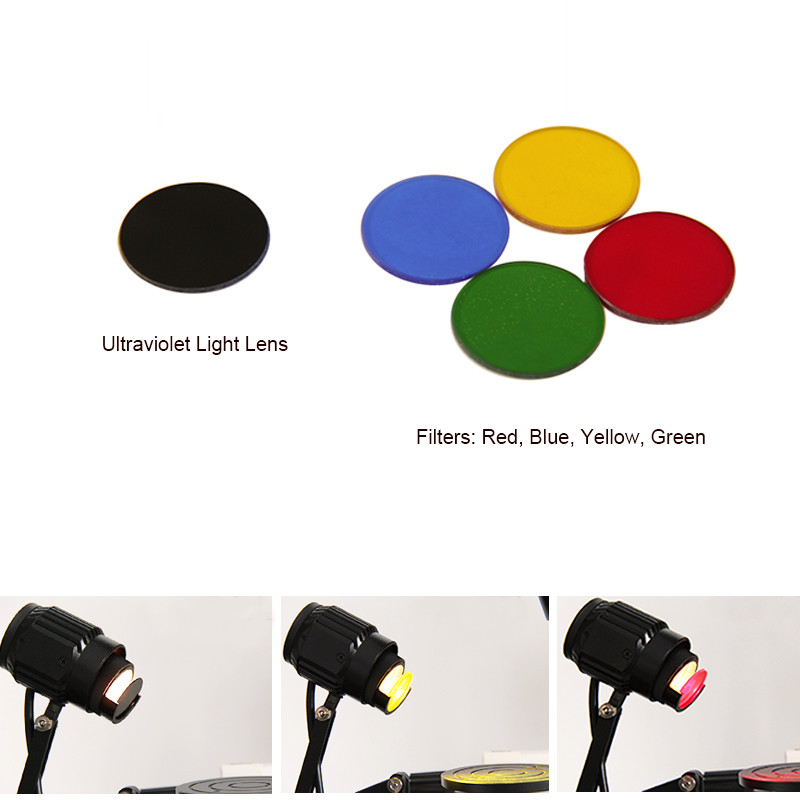

| Ultraviolet Light Lens,2pcs | |||||||
| Filters: Red, Blue, Yellow, Green,2pcs Each Color | |||||||
| Adapter | 0.5x CCD Adapter For Digital Camera,1pc | ||||||
| Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon) | |||||||
| CCD Camera | Built-in 3.0M High Resolution Color CCD Camera,USB 2.0 Output,2048*1536 Pixels,Pixel Size 3.2*3.2μm | ||||||
| Power | 80~240V Wide Range Voltage | ||||||
| Bullet Holder | Standard Bullet Holder 2 Sets,Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects | ||||||
| Dimension | Instrument Size 43*34*65cm | ||||||
| Optional Accessories | |||||||

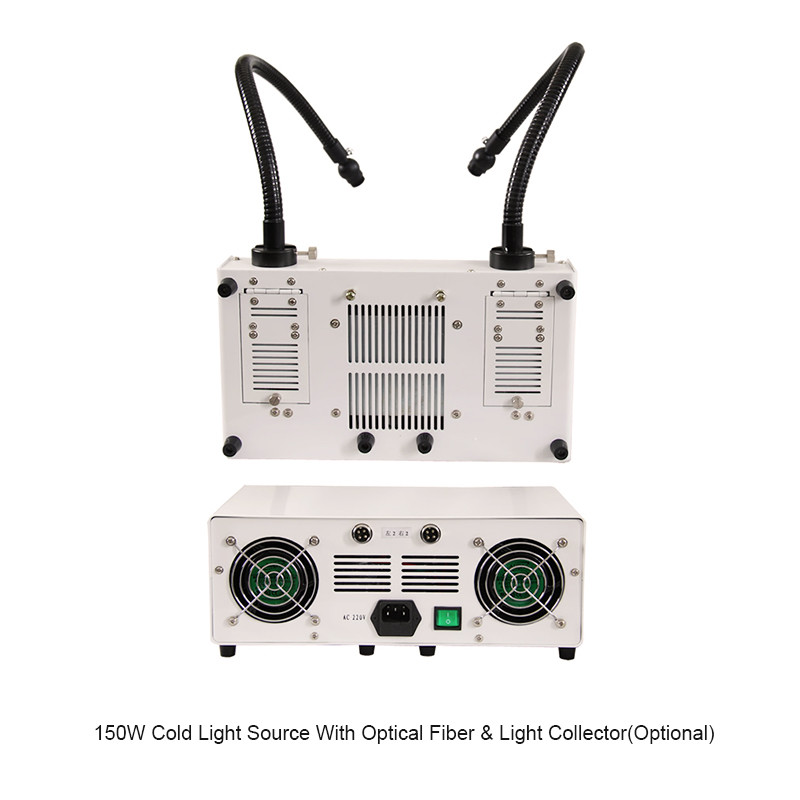

| Light Source | 150W Cold Light Source, With Optical Fiber & Light Collector | A56.1821 | |||||
| Software | Professional Forensic Image Analysis Software | A30.1821 | |||||
| Bullet Holder | Motorized Bullet Holder 1 Set, Used With Software | A54.1813 | |||||




|
